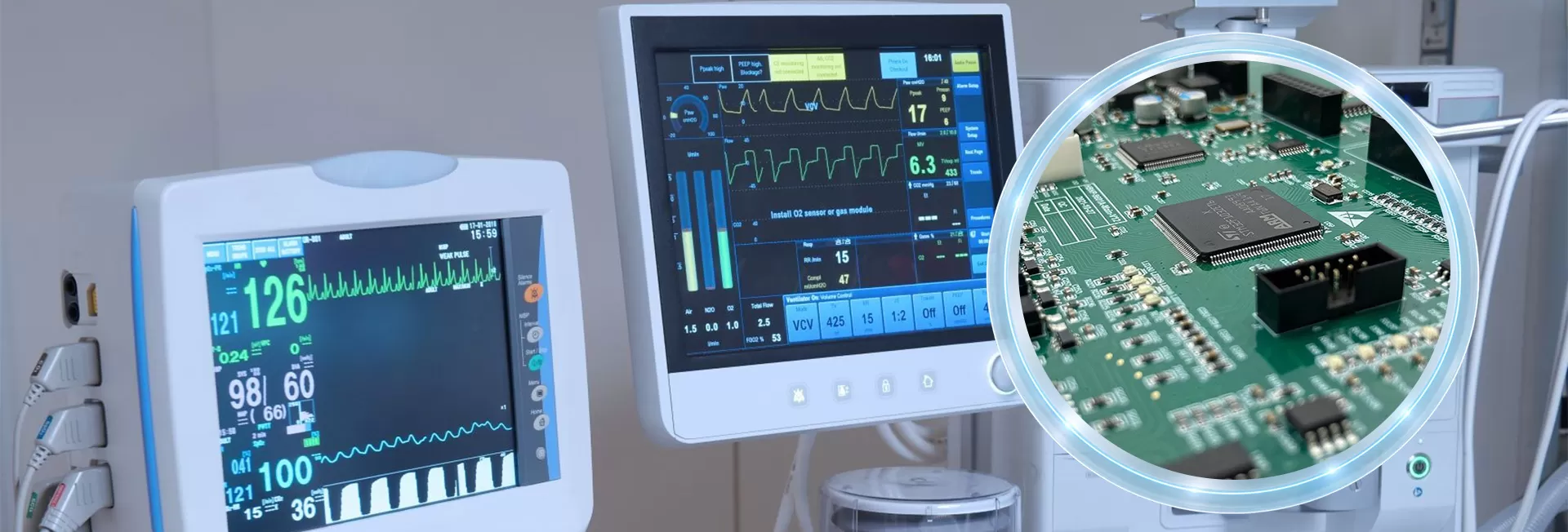

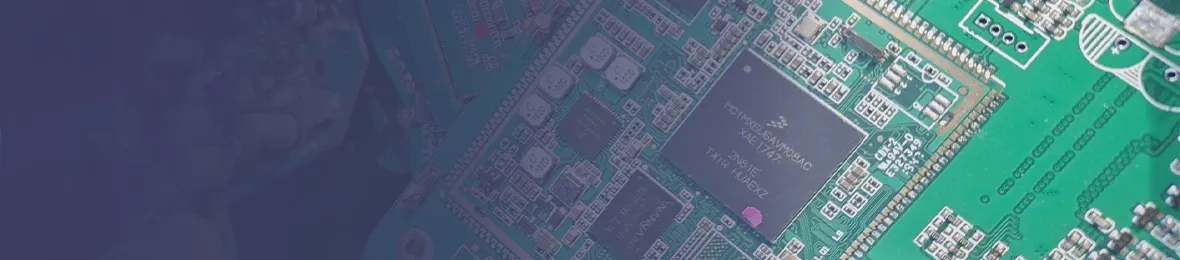

Typical medical PCB assembly includes analog, digital and power circuits, microcontrollers, ADCs, op-amps and sensors, supported by BGA placement and fine-pitch SMT assembly.
Analog, digital and power sections work together with control and sensing devices inside compact medical electronics.
Even a small loss of signal integrity can affect the performance of medical device electronics.
Misaligned connectors or buttons can prevent the completed medical device from operating correctly.

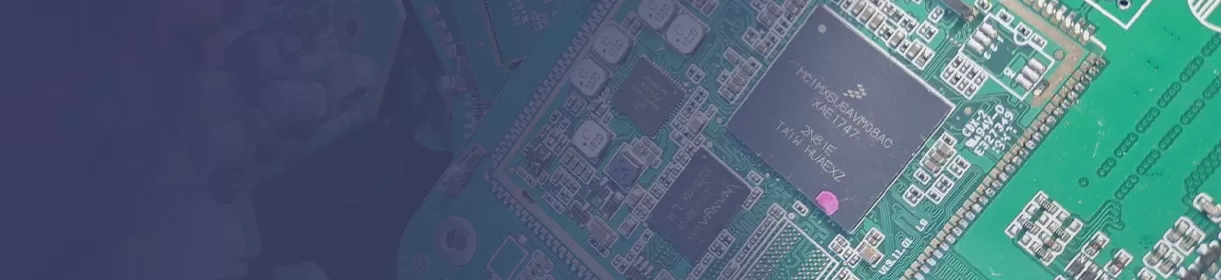

BGA placement and fine-pitch SMT assembly support compact medical PCB layouts where dense routing, component alignment and soldering consistency must all be controlled together.
Send your Gerber files, BOM, assembly data, and technical requirements for review and quotation.

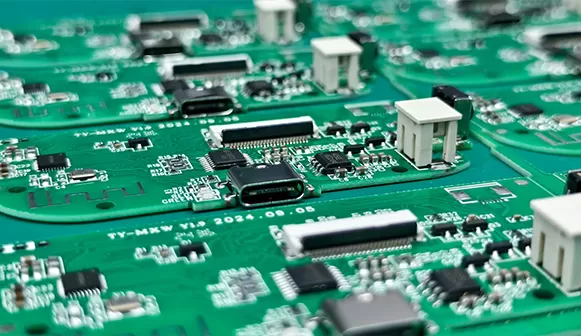

KnownPCBA provides in-house support for prototype PCBA assembly, sourcing, PCB production, SMT placement, and related processing for both small-batch and mass-production programs.

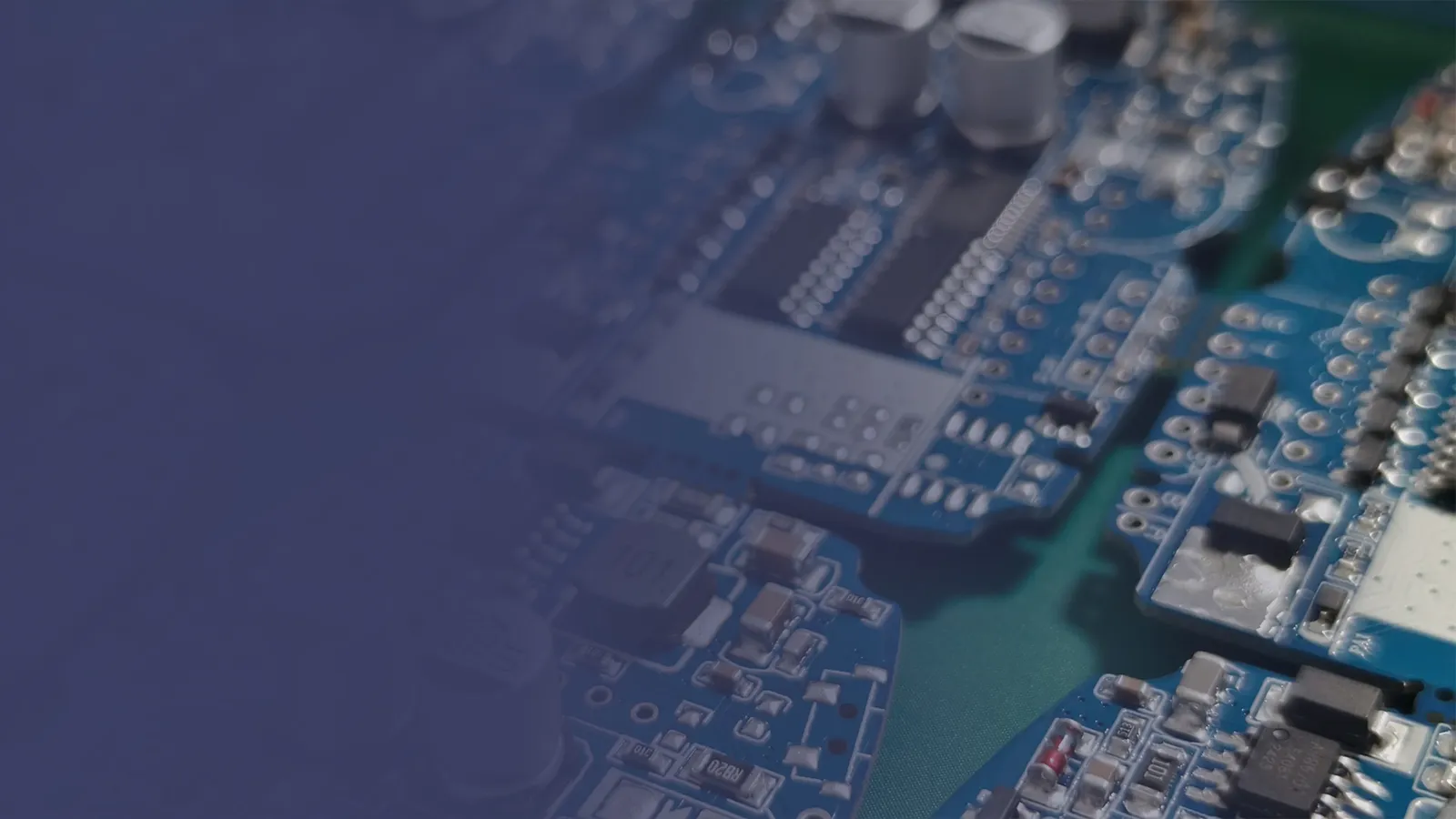

Solder paste volume and SMT reflow profiles are controlled to reduce bridging and improve solder joint consistency.
Connector orientation and mechanical fit are verified separately to support proper interface alignment in the finished medical device.

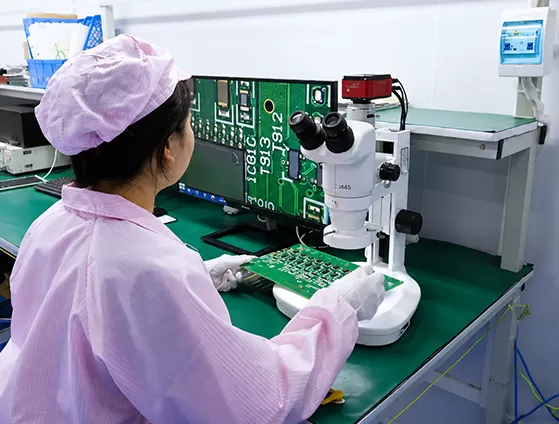

Quality control is not limited to a single SMT assembly inspection. First article inspection can run together with SMT AOI, while hidden joints under BGA packages may require X-ray inspection.
Medical PCB assembly requires complete component traceability so that materials, production batches and inspection results can be linked back to the finished assembly.
