Assembly Service

Advantages of Our PCBA Assembly

From component sourcing and NPI validation to prototyping and volume production, we provide an integrated PCBA manufacturing solution with controlled cost, quality and production risk.

One-Stop Solution

Turnkey PCBA from Sourcing to Production

Integrated component sourcing, PCB assembly and manufacturing support reduce coordination workload and allow your R&D team to focus on product development.

Supply Chain Better Cost & Component Availability Scaled procurement helps control costs and improves access to scarce components.	NPI Identify Risks Before Production Full-process NPI verification identifies manufacturing risks before volume production.
Flexible Production Prototype to Mass Production Support rapid prototyping, pilot runs and stable volume manufacturing.	Quality Control Full Quality Traceability Comprehensive quality management provides transparent production traceability.

PCBA Manufacturing: Prototyping, SMT assembly and volume production.

Ready to Start Your PCBA Project?

Send us your BOM & Gerber files for a fast review and quotation.

Get a PCBA Quote →

1+

MOQ

2+

Days Assembly Lead Time

10+

Quality Process

18+

Experiences

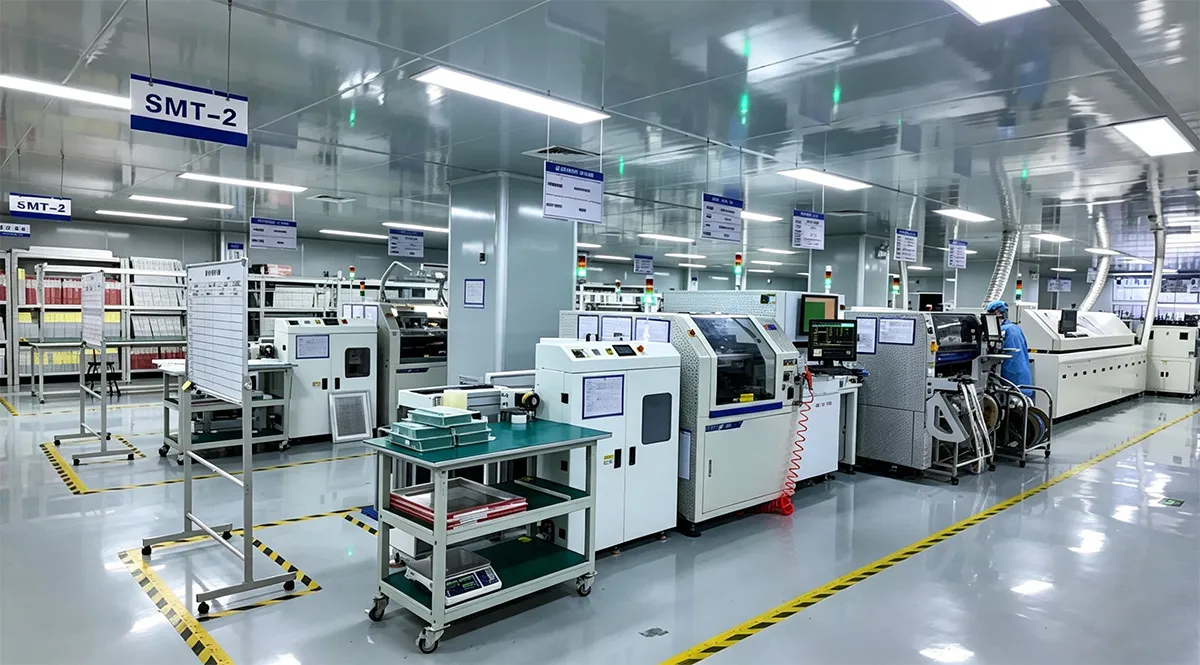

KnownPCBA Assembly Services Production Line

SMT PRODUCTION · 01

01 · SMT PRINTING

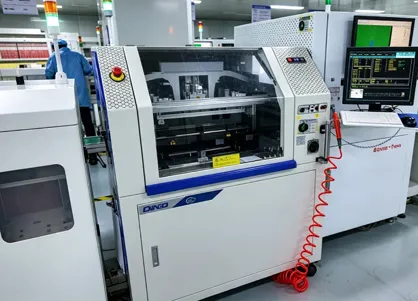

Solder Paste Printer

VIEW SPECS +

Accuracy: ±15~25 μm (@6σ), Cpk ≥ 2.0

Cycle Time: 6~10 sec / piece

PCB Size: 50×50 to 510×460mm

Thickness: 0.4~6mm

Squeegee: 0~10kg / 20~150mm/s

Vision: 2D/3D CCD, ±10 μm repeat positioning

02 · HIGH-SPEED SMT

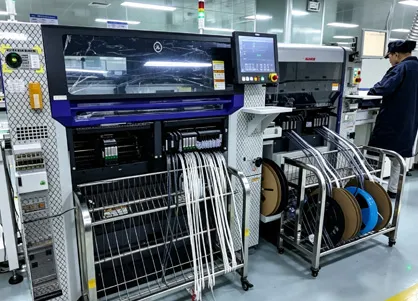

Pick and Place Machine

VIEW SPECS +

Speed: 60,000–115,000 CPH high-speed

Accuracy: ±15–30 μm, fine pitch up to ±10 μm

Components: 01005 to 72×72mm

Feeders: Up to 120+ positions

PCB Size: Up to 610×510mm

03 · THERMAL PROCESS

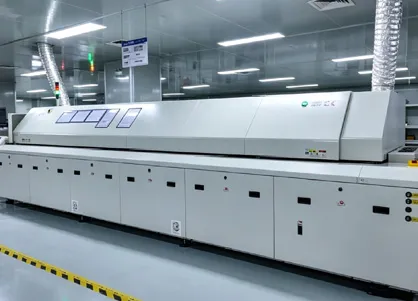

Reflow Soldering

VIEW SPECS +

Heating Zones: 8–14 independent zones + cooling

Max Temperature: 350–400℃

Width: 300–500mm adjustable

Accuracy: ±1–2℃

Nitrogen: Optional O₂ <50ppm / <100ppm

QUALITY INSPECTION · 02

04 · OPTICAL INSPECTION

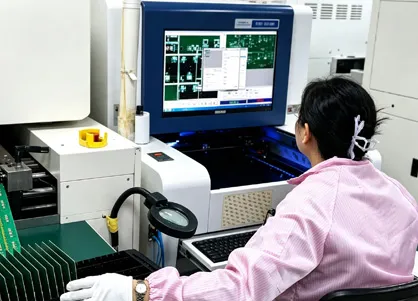

AOI Inspection

VIEW SPECS +

Camera: 5–12 million pixels, multi-angle lighting

Detection: Missing, wrong, polarity, bridging, short circuit and offset

Speed: 10–30 seconds / board

Precision: 0201 minimum, ±15 μm positioning

05 · INTERNAL INSPECTION

X-ray Inspection

VIEW SPECS +

Resolution: ≤1 μm microfocus resolution

Detection: Voids, bridging, low solder and coplanarity

Imaging: Single point <1 second

Applications: Automotive, medical and high-reliability PCBA

COMPLETE SMT PRODUCTION & INSPECTION

Printing → Placement → Reflow → AOI → X-ray

READY FOR YOUR NEXT PCBA PROJECT?

From Prototype to Mass Production — Start with a Fast PCBA Quote

Send your BOM & Gerber files. Our engineering team will review your project and provide a quotation.

Get a PCBA Quote →

Our PCB Assembly Services Solution

	Turnkey PCB Assembly CBA+ODM+PCB
PCBA Design Including DFM consultant and Apps ODM for IoT board		PCBA Test Multiple quality test process and international quality system certified
PCBA Components Purchasing Wide range of component available		Prototype PCB Assembly No MOQ with fast lead time
	PCBA Assembly Professional production machine to support efficient production

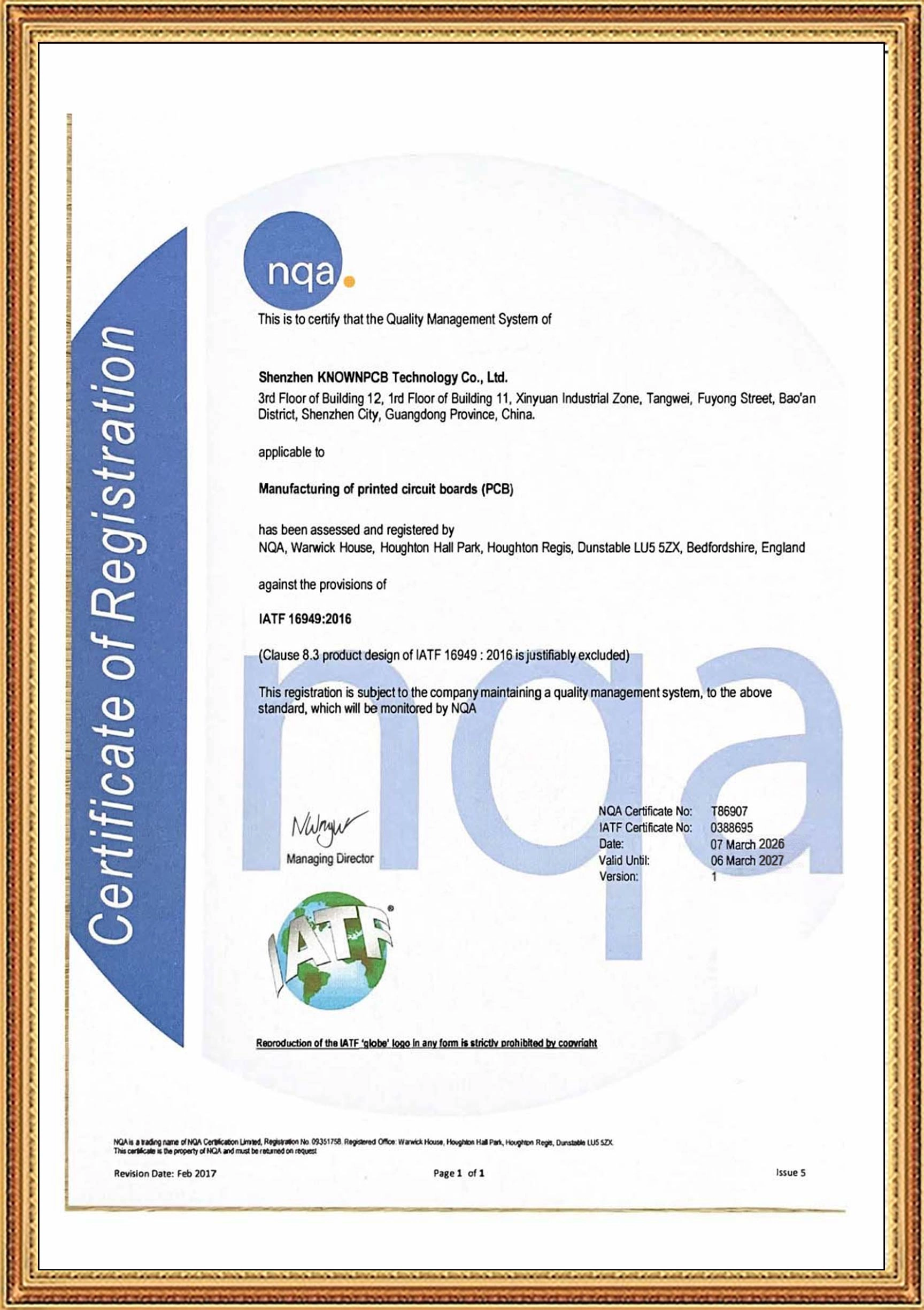

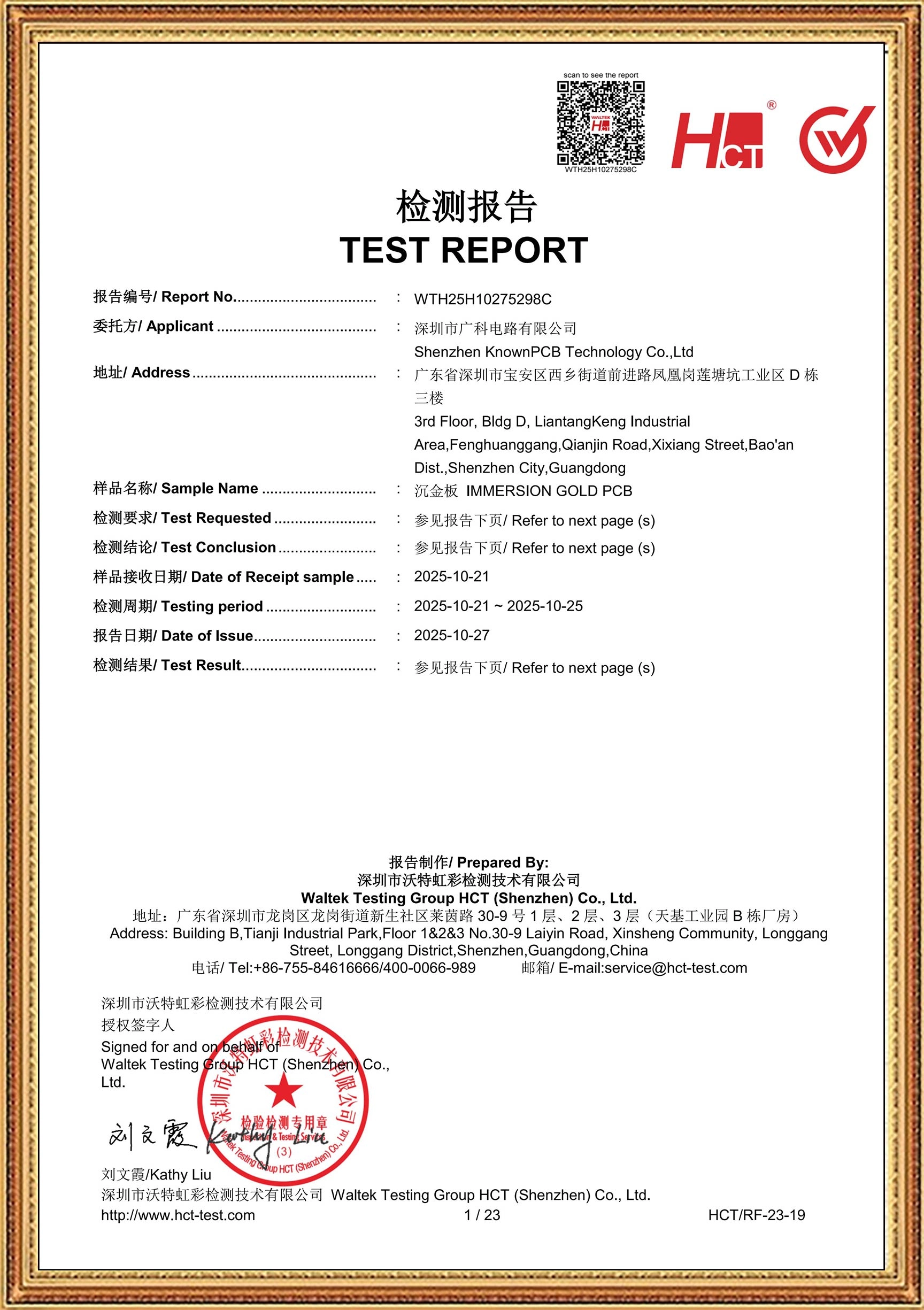

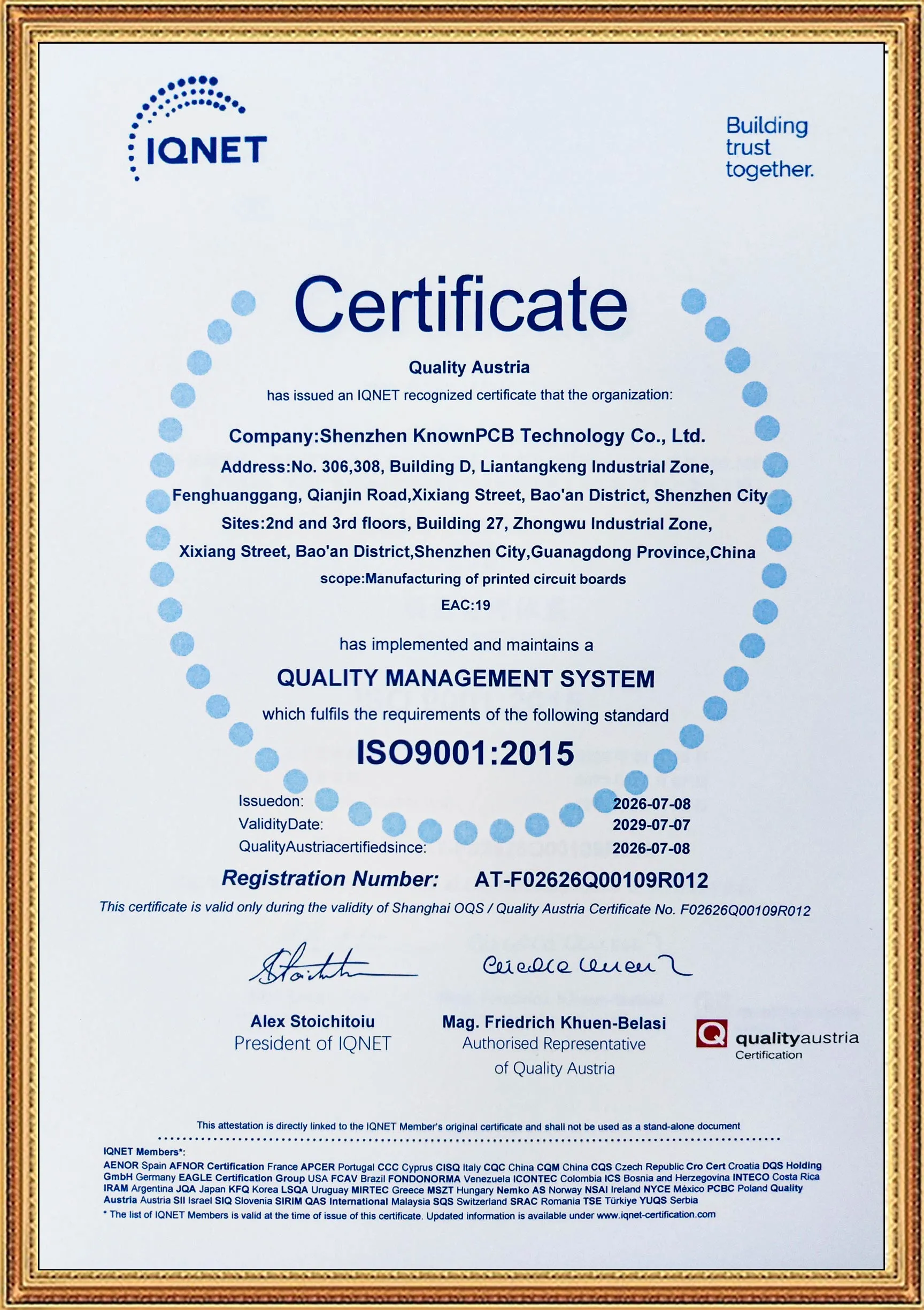

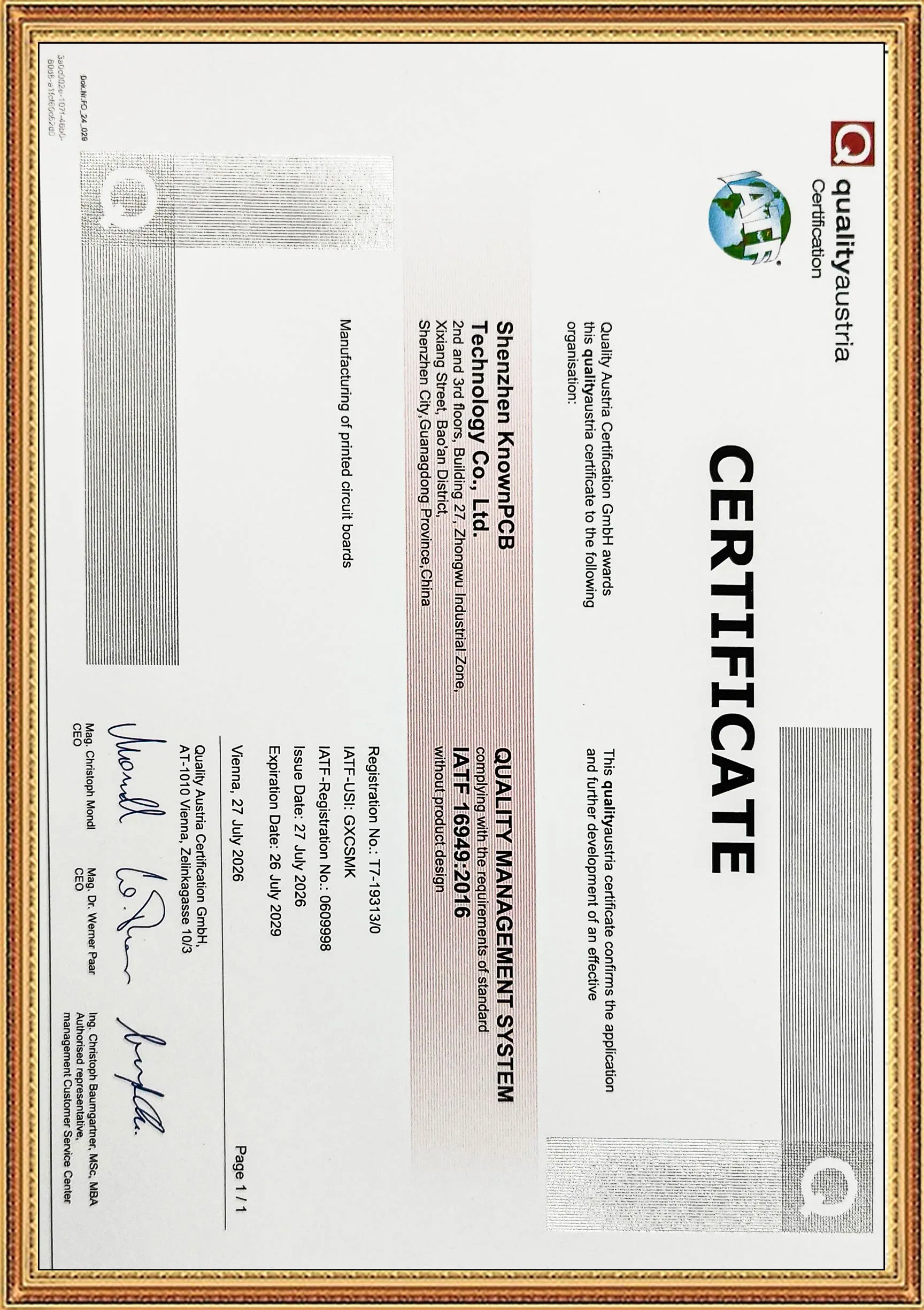

Quality Certification

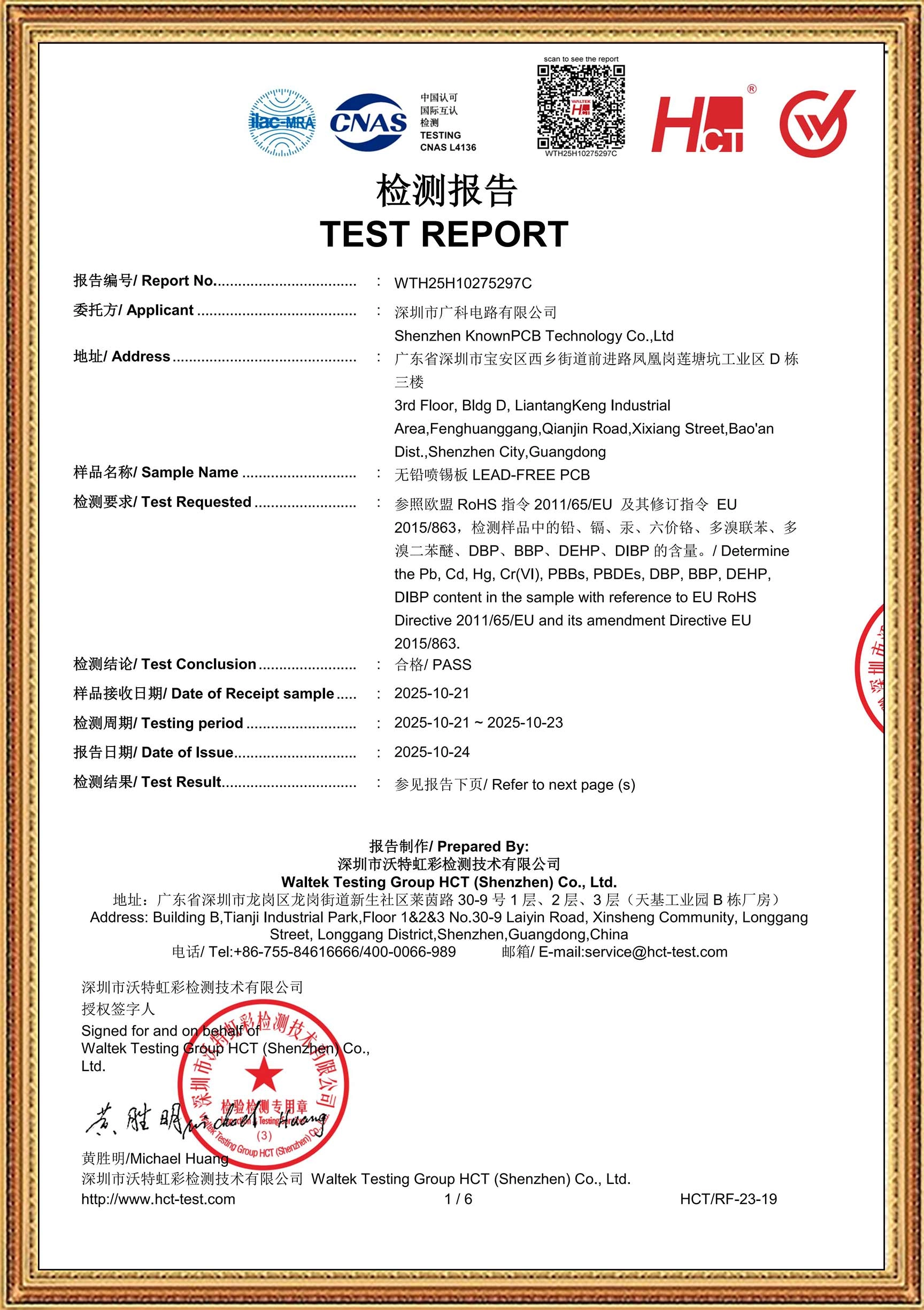

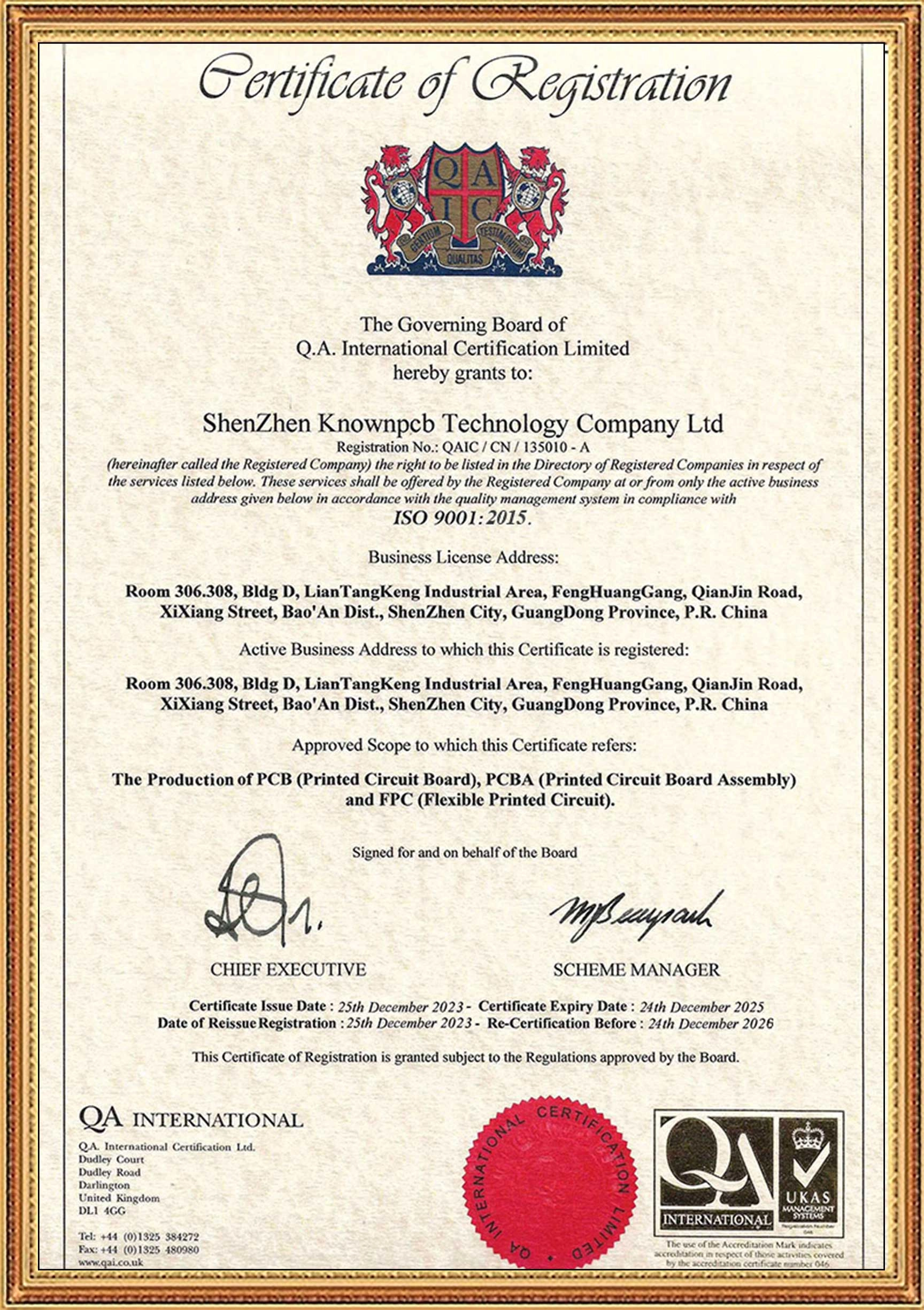

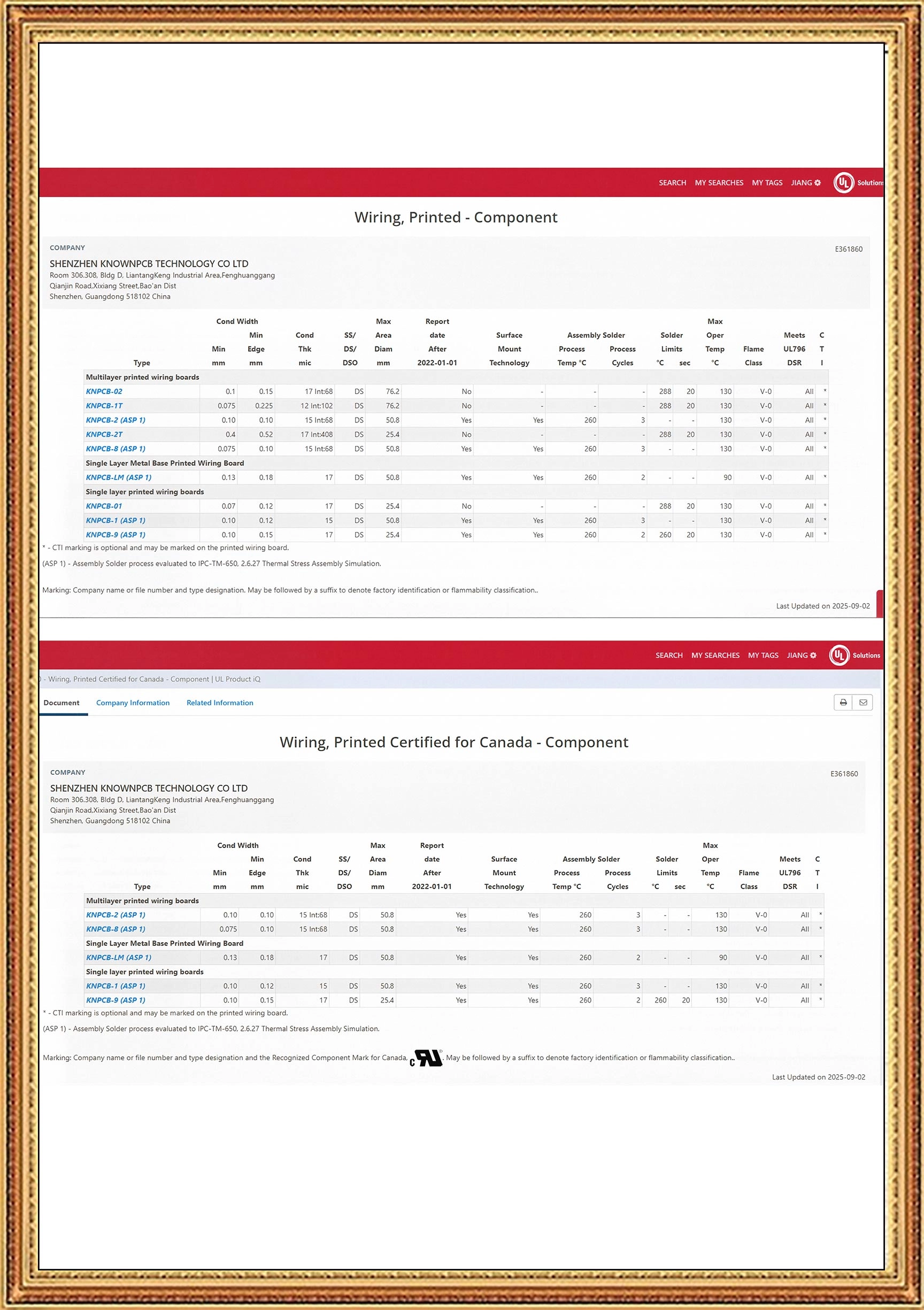

Comply with global authoritative certifications,including ISO9001, IATF16949, CQC, UL, Rohs, SGS, REACH. It strictly controls the entire process of PCBA. With outstanding quality, we aim at offering good solution and services to our customer.
