When the AI hardware assembly project comes to the DFM stage, you can send Gerber files, BOM, Pick and Place files and assembly drawings for quotation and technical review. KnownPCB is a great help here.
Here is where an experienced AI Hardware PCB assembly manufacturer can help.
We always help turn your AI Hardware designs into reliable finished products on your marketing schedule.
Quote Now

KnownPCBA comes into play when you start a fast-turnaround PCB assembly prototyping or full-scale production of AI Hardware project. We handle everything from PCB fabrication and component sourcing to SMT assembly, through-hole assembly, functional testing, and final box build assembly.
We handle everything from PCB fabrication and component sourcing to SMT assembly, through-hole assembly, functional testing, and final box build assembly.
Here is where an experienced AI Hardware PCB assembly manufacturer can help. We always help turn your AI Hardware designs into reliable finished products on your marketing schedule.

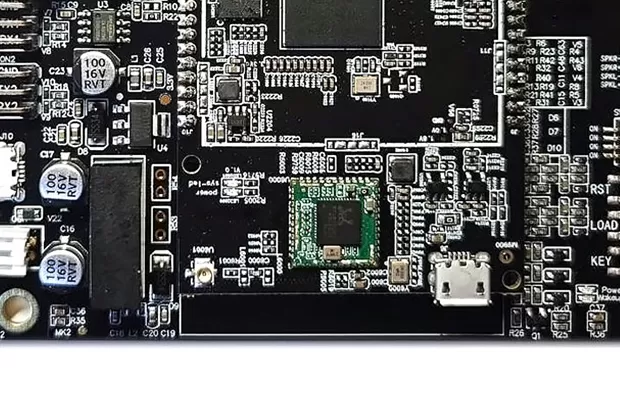

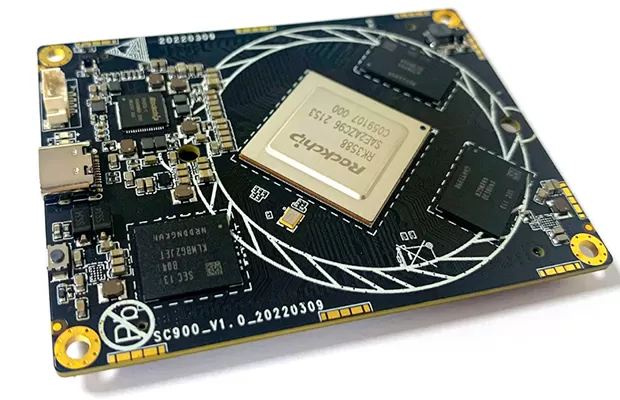

As with most AI Hardware devices today, the components are integrated in a compactable PCB board that covering wireless communication modules, sensors, antennas, batteries, connectors and microcontrollers. As defined above, these kind of AI Hardware devices, such as System on Module, Neural Processing Unit (NPU), require better accurate SMT placement, stable soldering quality and functional testing to ensure that the final device can communicate, collect data and operate reliably.
Meanwhile, flexible PCB assembly prototyping support, BOM sourcing, especially inventory reservation of hard-to-find components, and manufacturability review are designed to reduce delays and improving production readiness. It is safeguards for supporting customers from early engineering samples to stable batch production.
During fast-turn prototyping for AI hardware assembly projects, customers may need BOM review, component sourcing, DFM feedback and quick assembly support at a rapid speed.
To put it simply, a shorter lead time is one of the key success factors for AI hardware assembly PCB projects .
We apply inspection and testing steps throughout the AI hardware PCB assembly process to reduce defects, improve batch consistency, and help ensure reliable electronic performance.

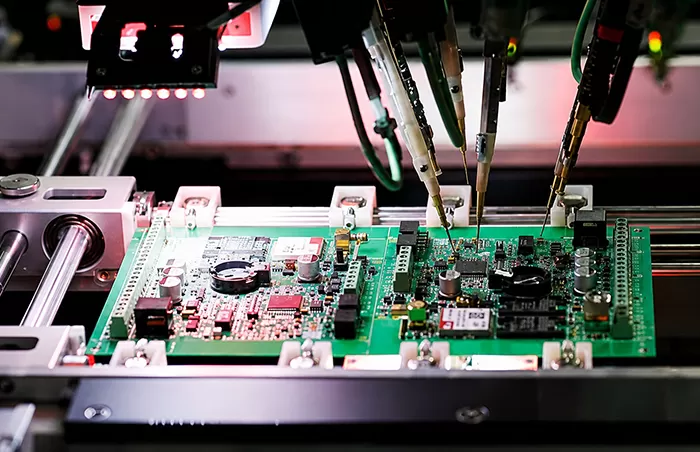

Quality control covers component placement, soldering, cleanliness, optical inspection, optional X-ray inspection, electrical testing and power analysis.
| Capability Item | Minimum Requirement |
|---|---|
| Minimum Component Size | 0201 package, 0.6 × 0.3 mm |
| Placement Accuracy | ±0.035 mm |
| Cleaning Process | Water-based / semi-aqueous cleaning, with ionic contamination testing |
| Special Soldering Capability | Low-temperature reflow soldering, suitable for battery holder assembly |
| Inspection Equipment | 3D SPI, AOI, and optional X-ray inspection |
| Testing Capability | Flying probe testing and power consumption analysis |
Simply upload your Gerber files, BOM, Pick and Place file, and assembly drawings. We’ll review your data to provide an AI hardware PCB assembly quotation based on your technical and production requirements.
Send your manufacturing files for quotation and technical review.
